2 bedrooms, 1 bathroom, utility room, a full kitchen with a living/dining area.
$9.00

When you have a narrow strip of land, your options are few. While this house is only 17 feet wide, it provides space for rest, community, privacy, and independent living. Easy to build (a 4 out of 10 on the Mended Oak Difficulty Scale). No truss engineering needed. Cool and heat with a two mini-split units or a small central unit.
If you choose this model

We provide architectural plans based on the level of your selection for a 2‑bedroom, 4‑bath, 850 sq. ft. home. With a 17' x 50' footprint,
For DIY Builders

Arnold's Aspen is one of the easier plans for a DIY builder. (Mended Oak Scale 4 out of 10). No special lumber. No truss engineering. Minimal cuts for the rafters. No collar ties and ceiling joists that sit square. Cool and heat with two mini-splits or a small central unit.
What's included in my plans?

Architectural Set - PDF and (2) Paper Copies
- General Notes
- Building Footprint

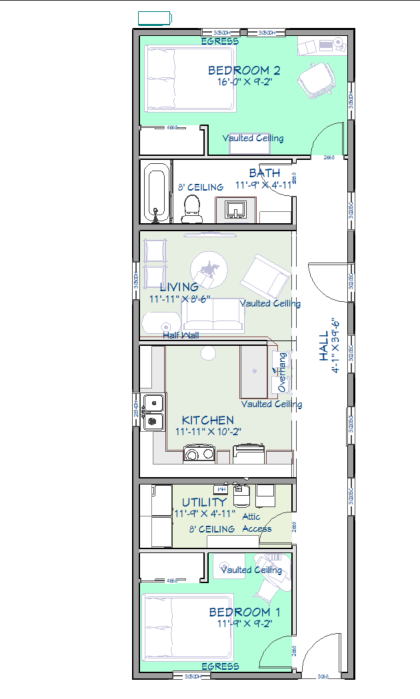

- Floor Plan
- Electrical Plan
- Roof Plan
- Elevations
- Window/Door Schedule
- Typical Wall Sections
- Roof/Window/Door Flashing

Structural Set - Digitally Signed PDF and (2) Paper Copies
- Cover Sheet (Governing Codes, Wind and Gravity Loads, Component List)
- Foundation Plan with Construction Details
- Required Structural Details
- Wall Framing
- Roof and Ceiling Framing Plan (If Conventionally Framed)
- Truss Layout (If Selected)

About the Finished Product: A good solution for a room-mates or a small family. Alternatively, it creates a good space for a bedroom in back with an office up front.

Need to Customize? Want to add a porch, remove the kitchen, expand the bath? Custom rates start at $1 per square foot.

Width needed is 17 feet plus set-backs. Depth is 50 feet.

Subnote: Truss Plans are purchased separately from a truss manufacturer and aren't part of the plan-set price. If you'd like to use trusses, we recommend getting three quotes. (Florida Only: After you pick the one you prefer, we'll give them the design information they need, review their engineered truss package for your home, and update your plans so everything fits together smoothly. Selecting the truss option typically delays delivery by four to six weeks).
