Isaac's Mesquite (ADU)
703 sq. ft. - 1 Bed, 1 Bath, No Garage
$1,050.00
Sale price
$1,050.00
Regular price
Isaac’s Mesquite Alternative Dwelling Unit (ADU) is a small house designed with a modern look. Designed for narrow lots and spaces, it’s a practical option for guest quarters, rental income, or independent living. Includes a large porch/carport along one side of the house.
We provide complete architectural plans (which includes Florida PE-stamped structural plans for Florida projects) for a 703 sq. ft. 1-bedroom, 1-bathroom ADU. Including the garage/carport, it has a 16’x44’ footprint, (1144 sq ft). this design fits well in narrow spaces or in‑fill parcels (Note: At 703 square feet, it exceeds some municipalities’ definition of an ADU.). Like all Mended Oak plans, we designed this one for straight-forward, low-cost construction. This is our most straight forward house to build.
A motivated two-person crew with some skill can complete this structure over a series of weekends (Mended Oak Scale 4 out of 10). It is one of the more straightforward house plans offered, making it a good starting point for do-it-yourself home builders. The structure consists of four walls and a roof, with a sloped-roof porch on one side.
Once completed, the roof will have been conventionally framed, spaces with both flat and vaulted ceilings will have been created, balloon-framed rake walls and traditional platform-framed walls will have been constructed, and windows and doors will have been installed. This plan is ideal for building confidence, learning the permitting process, discovering personal capabilities, or working with friends and family. It is also a practical choice if the project needs to be handed off to a builder for a quick turnaround.
Architectural Set - PDF and (2) Paper Copies
- General Notes
- Building Footprint

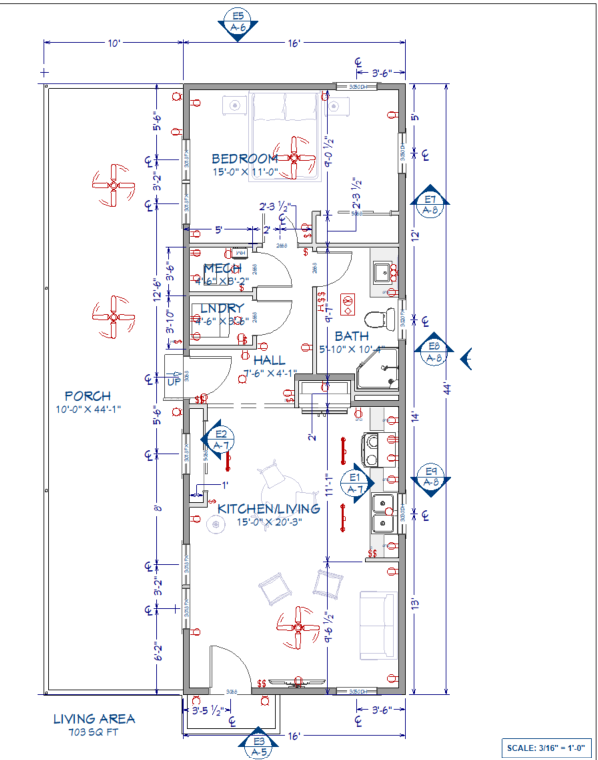

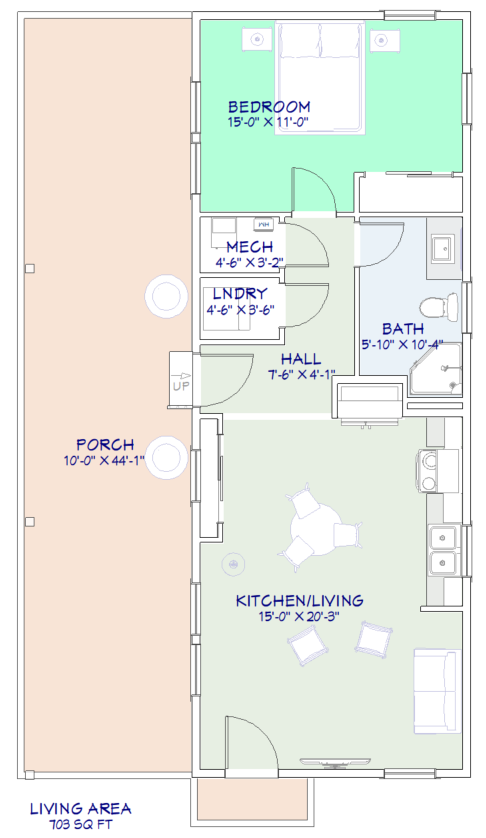

- Floor Plan
- Electrical Plan
- Roof Plan
- Elevations
- Window/Door Schedule
- Typical Wall Sections
- Roof/Window/Door Flashing
Structural Set - Digitally Signed PDF and (2) Paper Copies
- Cover Sheet (Governing Codes, Wind and Gravity Loads, Component List)
- Foundation Plan with Construction Details
- Required Structural Details
- Wall Framing
- Roof and Ceiling Framing Plan (If Conventionally Framed)
- Truss Layout (If Selected)
About the Finished Product: The porch extends across the front, providing a space for relaxing outside or welcoming friends and neighbors. Windows above the porch allow abundant natural light to enter. The vaulted ceilings and ample light make the space feel larger. Ultimately, it creates a comfortable living space for a single person or a couple.
Need to Customize? Want to enclose the porch? Modify a window or door? Change the exterior finish? Download a custom worksheet, mark it up, and contact us with the results. We want to work with you to deliver the house you need. Custom rates start at $1 per square foot for floor plan changes. You'll receive a full quote before we begin.
Subnote: Truss Plans are purchased separately from a truss manufacturer and aren't part of the plan-set price. If you'd like to use trusses, we recommend getting three quotes. (Florida Only: After you pick the one you prefer, we'll give them the design information they need, review their engineered truss package for your home, and update your plans so everything fits together smoothly. Selecting the truss option typically delays delivery by four to six weeks).
