Jordan's Sycamore (4BR 3Bath)
2278 sq. ft. - 3 Bed, 3 Bath, No Garage
$1,650.00
Sale price
$1,650.00
Regular price
With cathedral ceilings, skylights, and a fireplace, the main living area is bright and welcoming. An open pantry connects directly to the deck and backyard, making gatherings flow naturally indoors and out. Efficiently arranged bedrooms provide retreat and personal space, making this plan well suited for families who enjoy hosting friends.
We provide complete architectural plans (which includes Florida PE-stamped structural plans for Florida projects) for a 3‑bedroom, 3‑bath, 2,278 sq. ft. home engineered for the conditions at your site. With a 49' x 60' footprint, Jordan's Sycamore will fit comfortably in a moderately sized parcel of land, perfect for a medium size family. Like all our plans, we designed this one for straight-forward, low-cost construction.
Jordan's Sycamore is a more ambitious project for a do-it-yourself builder (Mended Oak Scale 7 out of 10). If you decide to build it yourself, be sure to have knowledgeable, reliable expertise lined up to help. Should you choose to take on all or part of the construction yourself, all the necessary materials and tools can be found at your nearest big-box retail building supply store. Upon completing this structure, you will have constructed balloon-framed rake walls, traditional platform-framed walls, conventionally framed the ceiling and roof, over-framed portions of the roof, assembled and set beams, created spaces with both vaulted and flat ceilings, framed a deck and a porch, framed a bump-out, and installed numerous windows and doors. Before starting, watch online videos on all these topics to determine which tasks you want to handle yourself.
Architectural Set - PDF and (2) Paper Copies
- General Notes
- Building Footprint

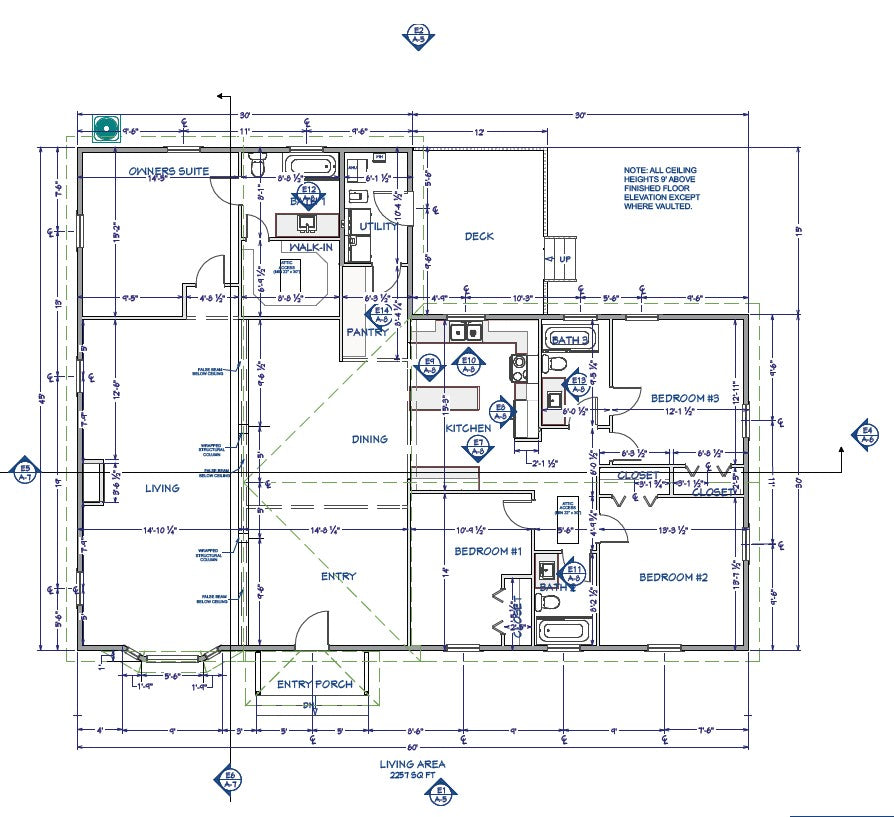

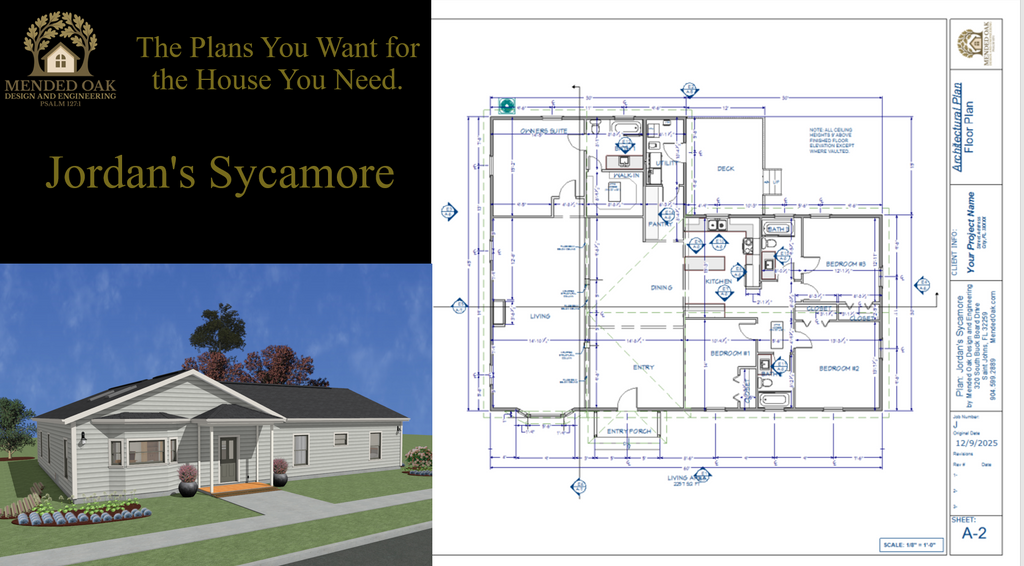

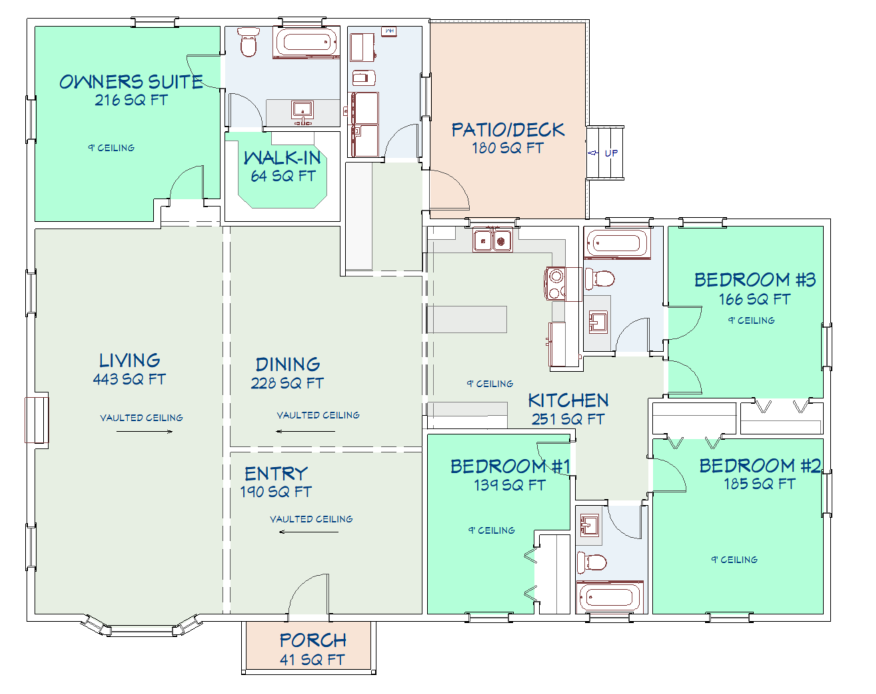

- Floor Plan
- Electrical Plan
- Roof Plan
- Elevations
- Window/Door Schedule
- Typical Wall Sections
- Roof/Window/Door Flashing
Structural Set - Digitally Signed PDF and (2) Paper Copies
- Cover Sheet (Governing Codes, Wind and Gravity Loads, Component List)
- Foundation Plan with Construction Details
- Required Structural Details
- Wall Framing
- Roof and Ceiling Framing Plan (If Conventionally Framed)
- Truss Layout (If Selected)

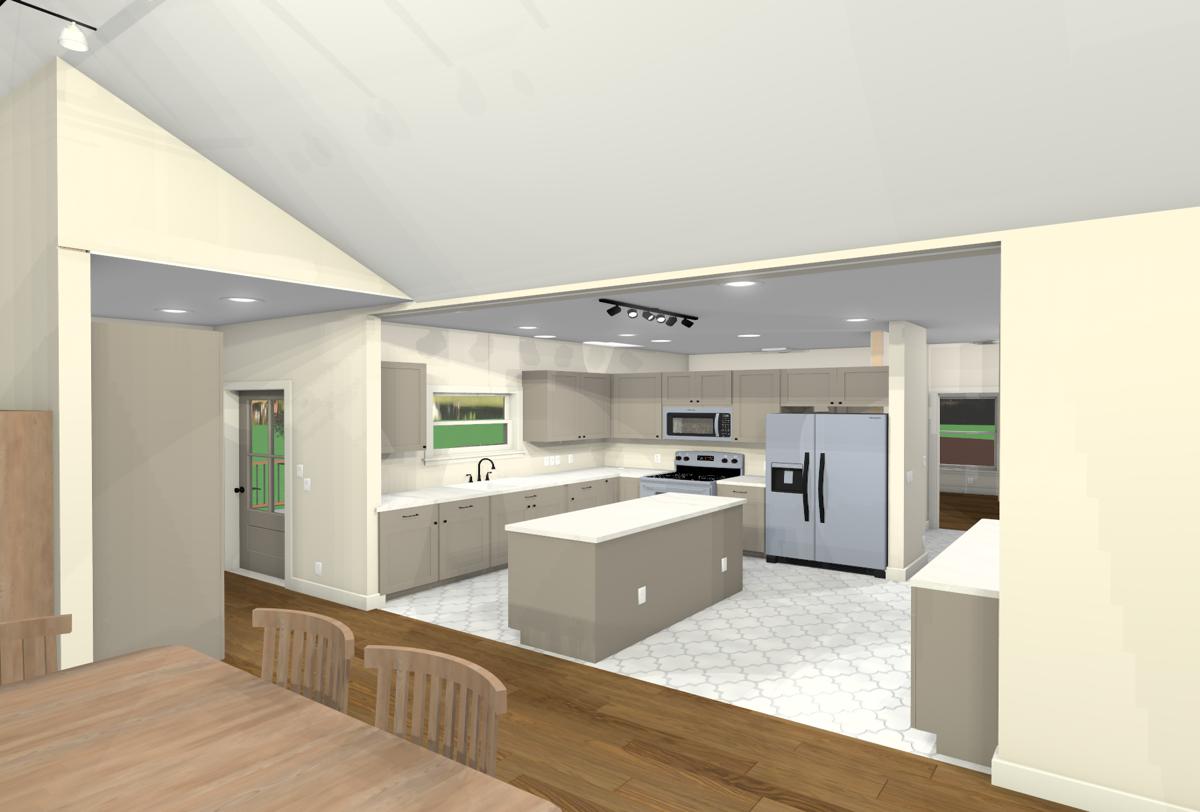

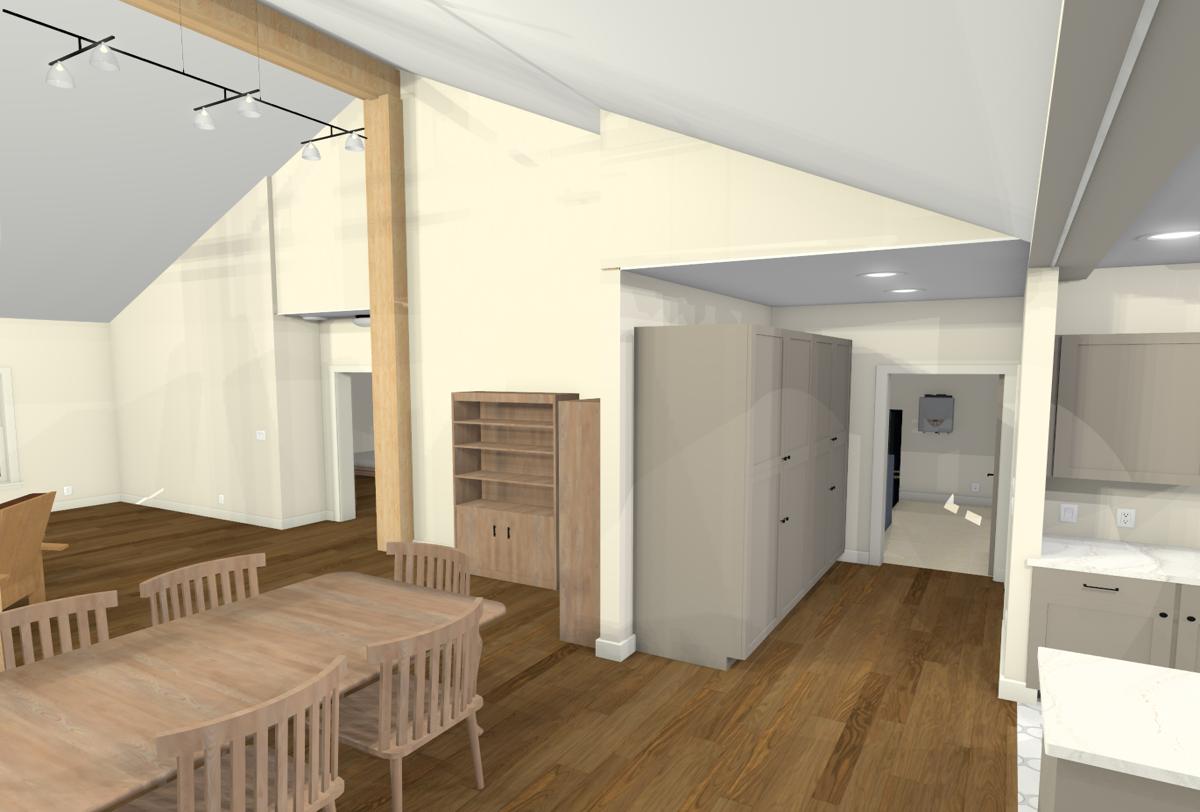

About the Finished Product: Jordan's Sycamore is designed to provide community and hospitality in one area, with privacy and retreat in the bedrooms and living quarters. The cathedral ceiling, skylights, and fireplace create an inviting gathering space for guests, friends, or family. A doorway by the open pantry allows the party to flow onto the deck and into the backyard, with the kitchen positioned to serve both areas. The bedrooms are laid out efficiently, offering ample personal space and privacy. This home is well suited for a family that enjoys welcoming friends.
Need to Customize? Want to extend the porch? Modify a window or door? Change the exterior finish? Download a custom worksheet, mark it up, and contact us with the results. We want to work with you to deliver the house you need. Custom rates start at $1 per square foot for floor plan changes. You'll receive a full quote before we begin.
Subnote: Truss Plans are purchased separately from a truss manufacturer and aren't part of the plan-set price. If you'd like to use trusses, we recommend getting three quotes. (Florida Only: After you pick the one you prefer, we'll give them the design information they need, review their engineered truss package for your home, and update your plans so everything fits together smoothly. Selecting the truss option typically delays delivery by four to six weeks).
