Lindsay's Laurel Oak (3BR 3Bath)
2,554 sq. ft. - 3 Bed, 3 Bath, No Garage
$1,650.00
Sale price
$1,650.00
Regular price

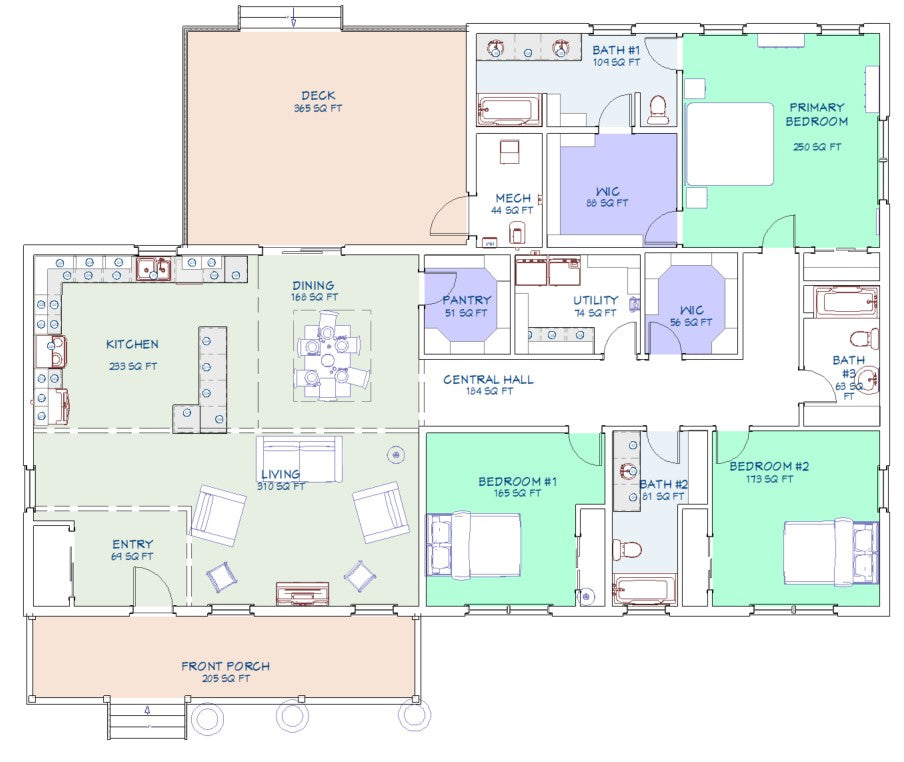

At Mended Oak, we understand the value of creating community and the importance of having quiet, personal spaces for rest and renewal. This 3-bedroom, 3-bath home features spaces designed for both. When you enter, you step into the vaulted, open living room, which flows naturally into the dining area and large kitchen. Beyond the dining room, a glass door opens to a spacious deck and the backyard. Two of the three bedrooms are well separated from the more public areas, providing quieter and more private spaces.
We provide complete architectural plans (which includes Florida PE-stamped structural plans for Florida projects) for a 2,554 sq. ft. 3‑bedroom, 3‑bath home engineered for the conditions at your site. Lindsay's Laurel Oak was designed in particular to balance community and privacy, and the room layout perfectly embodies this ideal. Like all our plans, we designed this one for straight-forward, low-cost construction.
This is a more ambitious project for a do-it-yourself builder (Mended Oak Scale: 7 out of 10). If you decide to build this yourself, make sure you have knowledgeable and reliable expertise lined up to help. Should you choose to take on all or part of the construction, all the materials and tools you need are available for purchase or rent at your nearest big-box retail building supply store. Upon completion, you will have constructed balloon-framed rake walls, traditional platform-framed walls, conventionally framed ceilings and roofs, over-framed portions of the roof, assembled and set beams, created spaces with both vaulted and flat ceilings, framed a deck and a porch, framed a bump-out, and installed numerous windows and doors. Be sure to watch online videos on all these topics ahead of time to decide which parts of the work you want to handle yourself.
Architectural Set - PDF and (2) Paper Copies
- General Notes
- Building Footprint

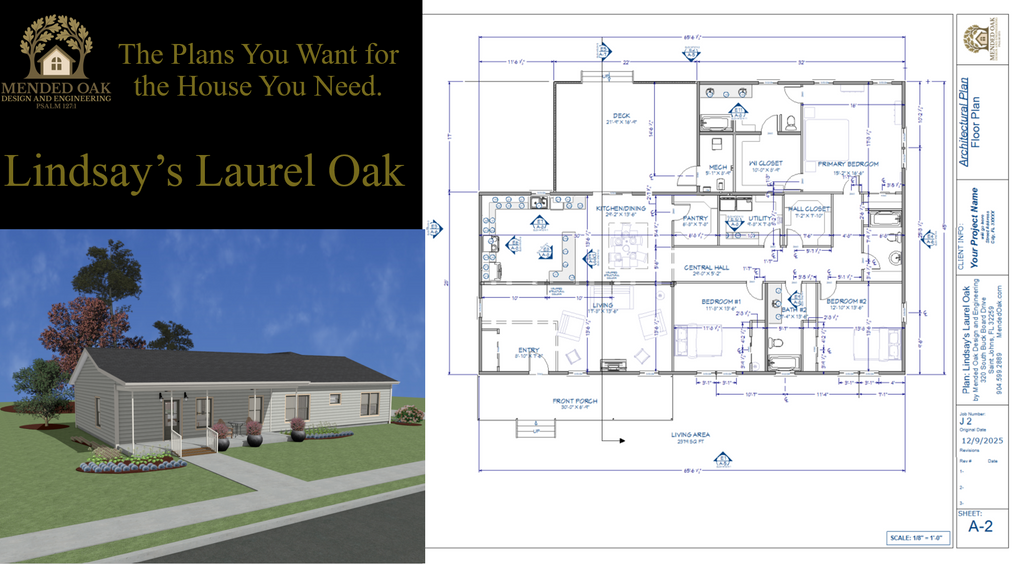

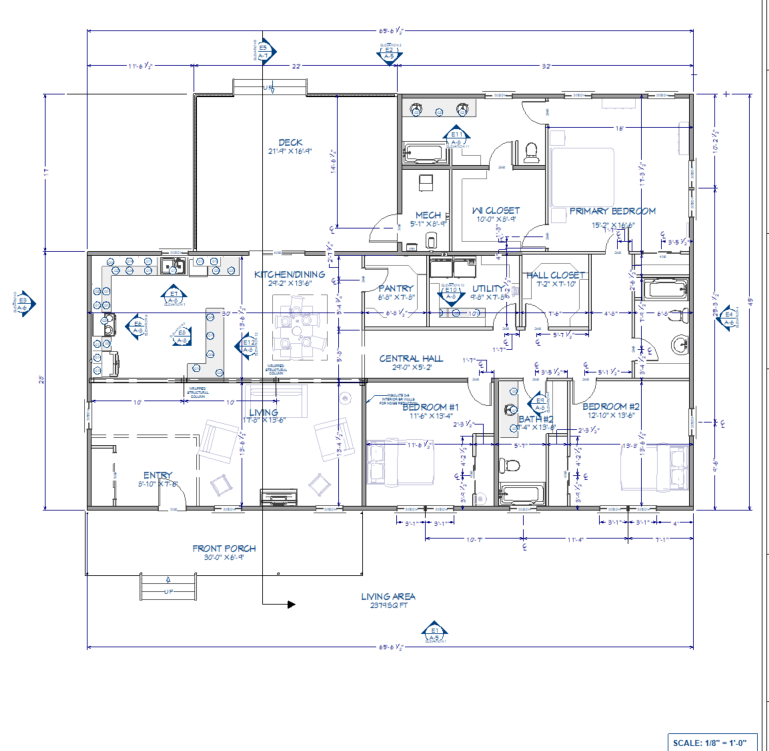

- Floor Plan
- Electrical Plan
- Roof Plan
- Elevations
- Window/Door Schedule
- Typical Wall Sections
- Roof/Window/Door Flashing
Structural Set - Digitally Signed PDF and (2) Paper Copies
- Cover Sheet (Governing Codes, Wind and Gravity Loads, Component List)
- Foundation Plan with Construction Details
- Required Structural Details
- Wall Framing
- Roof and Ceiling Framing Plan (If Conventionally Framed)
- Truss Layout (If Selected)
About the Finished Product: A vaulted living room flows into the dining area and large kitchen, while a glass door opens onto a spacious deck and backyard. Two bedrooms are set apart from the main living spaces, creating quiet retreats within a welcoming home. Lindsay's Laurel Oak is great for small or growing families looking for a larger abode.
Need to Customize? Want to extend the deck? Enclose the porch? Modify a window or door? Change the exterior finish? Download a custom worksheet, mark it up, and contact us with the results. We want to work with you to deliver the house you need. Custom rates start at $1 per square foot for floor plan changes. You'll receive a full quote before we begin.
Subnote: Truss Plans are purchased separately from a truss manufacturer and aren't part of the plan-set price. If you'd like to use trusses, we recommend getting three quotes. (Florida Only: After you pick the one you prefer, we'll give them the design information they need, review their engineered truss package for your home, and update your plans so everything fits together smoothly. Selecting the truss option typically delays delivery by four to six weeks).
