Ron's Sable Palm (3BR 2Bath 1Car)
2,233 sq. ft. - 3 Bed, 2 Bath, 1 Car
$1,450.00
Sale price
$1,450.00
Regular price

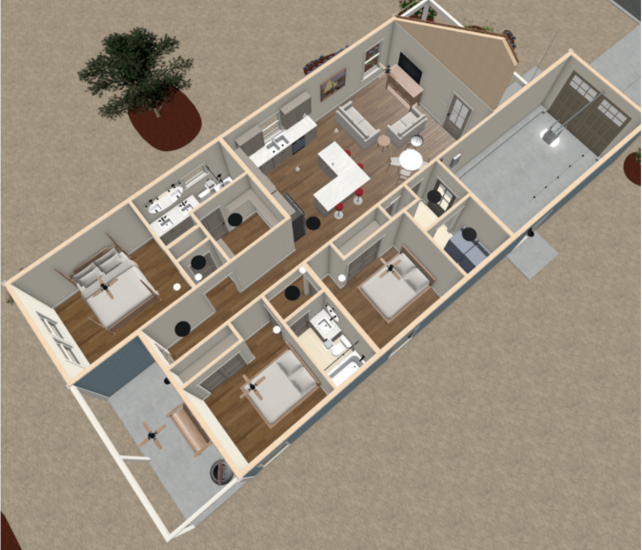

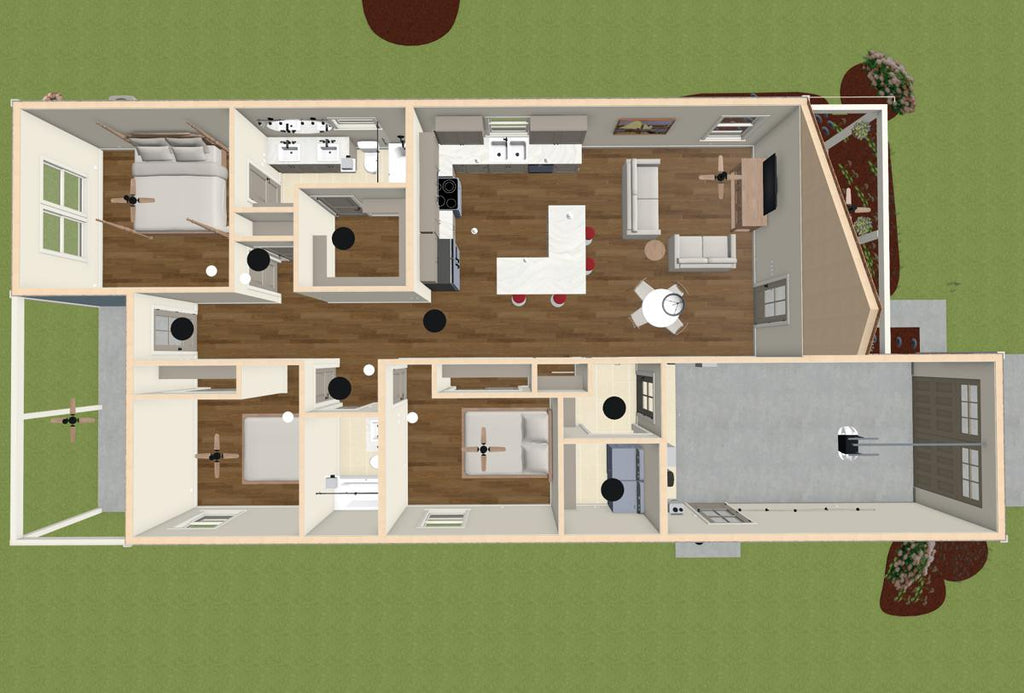

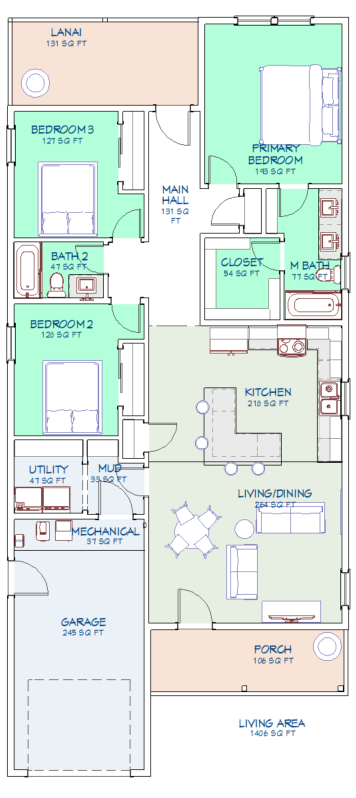

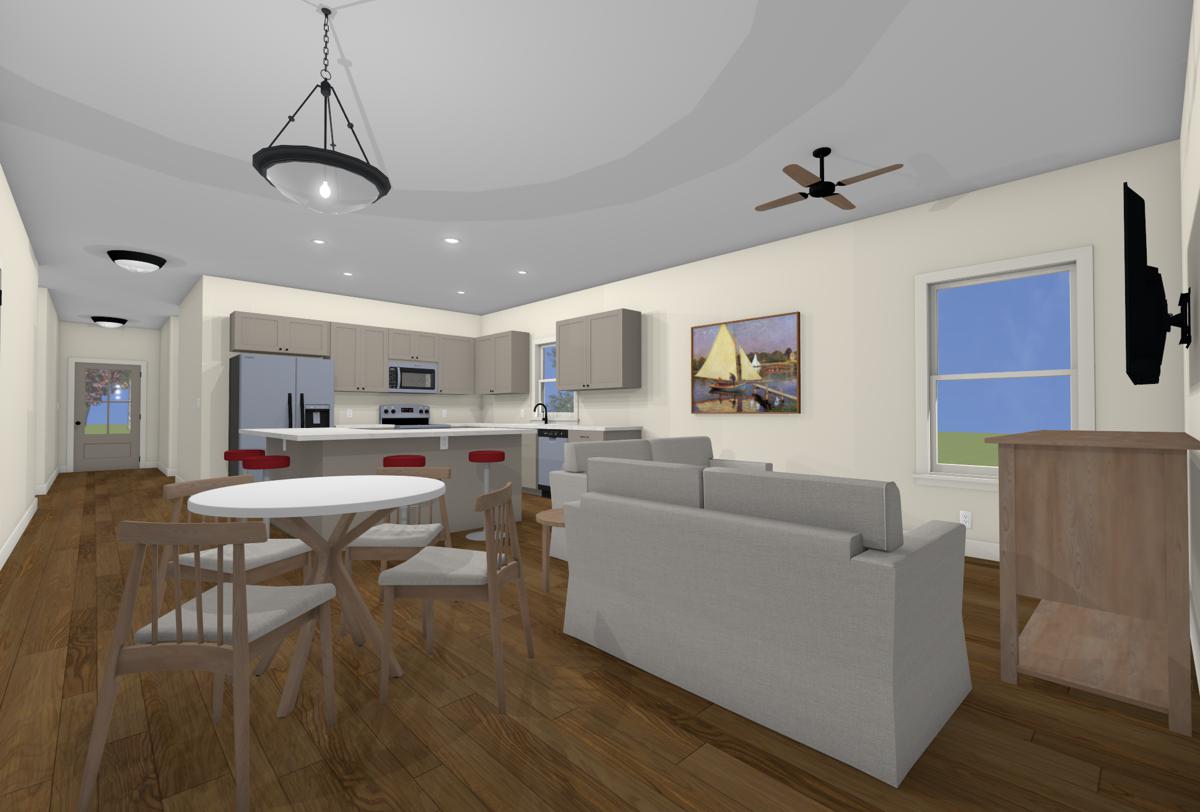

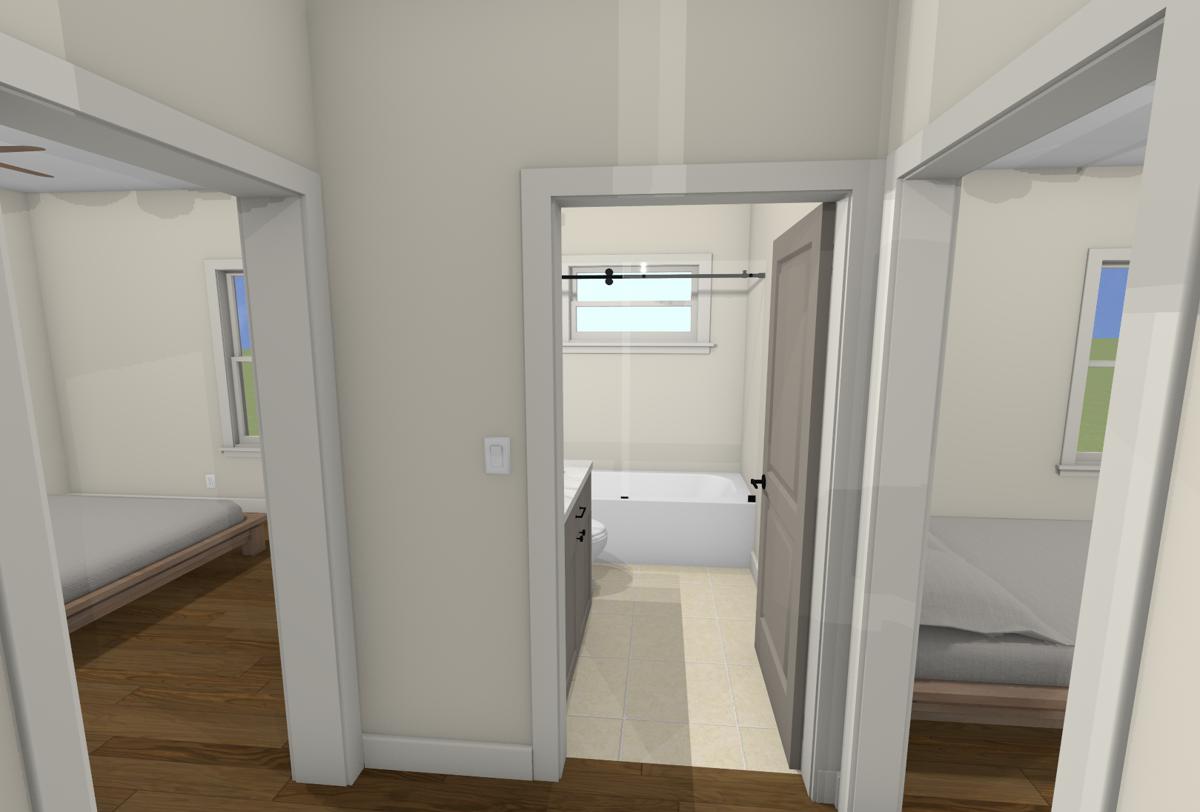

Like all Mended Oak homes, the layout of Ron's Sable Palm balances community and privacy. An open living/dining room welcomes you as you enter, flowing into a spacious kitchen. A central hallway leads to bedrooms on either side and a rear lanai that opens to the backyard.

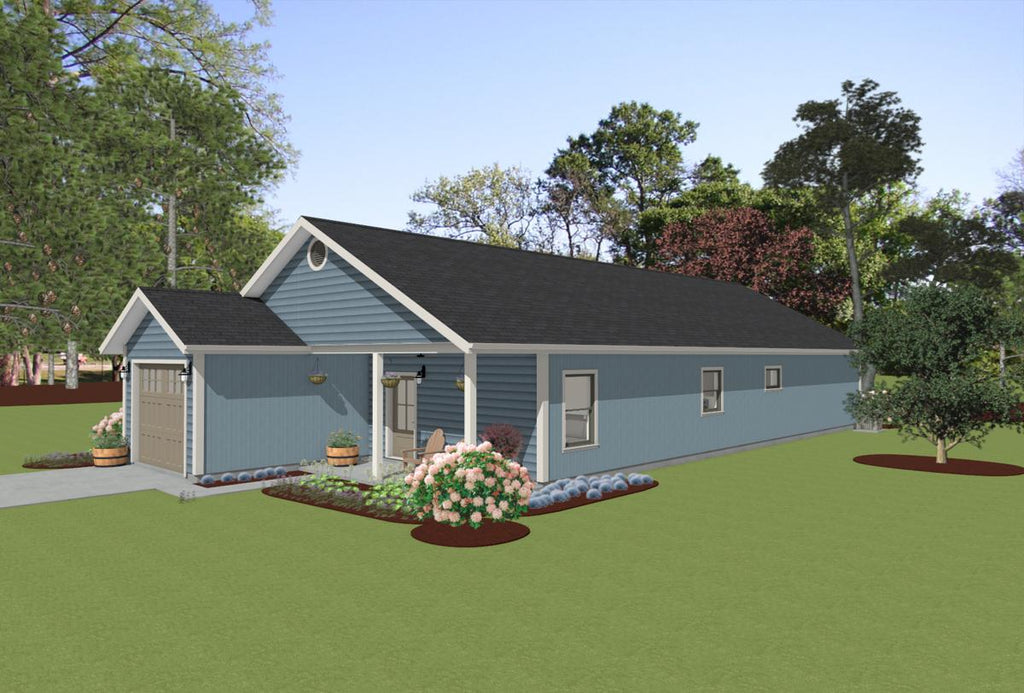

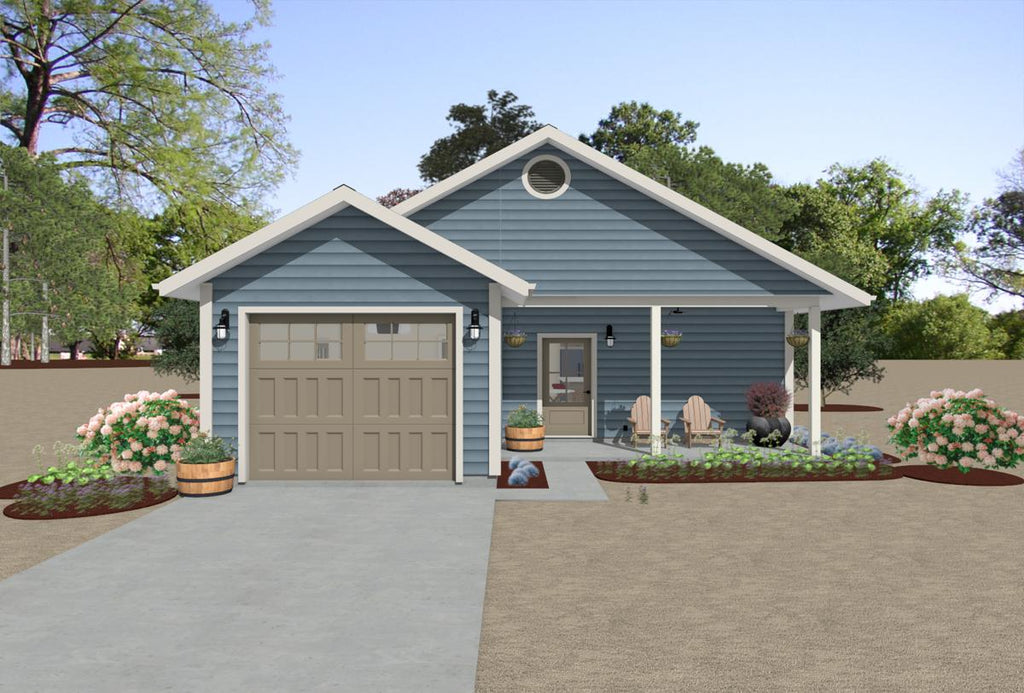

We provide complete architectural plans (which includes Florida PE-stamped structural plans for Florida projects) for a 3‑bedroom, 2‑bath, 2,233 sq. ft. home engineered for the conditions at your site. This design, with a 30' x 54' footprint, was created with a small or growing family in mind and fits comfortably on typical suburban lots as well as the in‑fill parcels common in many cities. Like all our plans, we designed this one for straight-forward, low-cost construction.

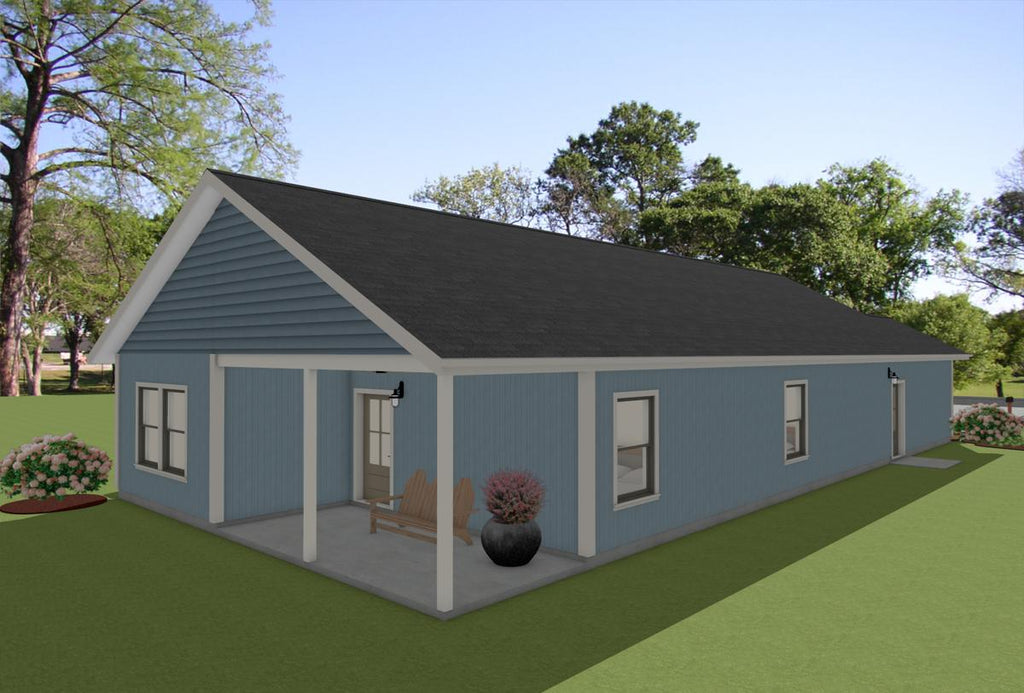

This is a ambitious project for a do‑it‑yourself builder (Mended Oak Scale: 7 out of 10). If you plan to build it yourself, be sure you have knowledgeable, reliable help available when needed. All required materials and tools can be purchased or rented from your local big‑box or wholesale building supply store. By the time you’re finished, you will have constructed traditional platform‑framed walls, conventionally framed ceilings and roofs, gable faces, and installed multiple windows and doors. Watching DIY tutorials ahead of time is strongly recommended so you can decide which tasks you want to take on personally.
Architectural Set - PDF and (2) Paper Copies
- General Notes
- Building Footprint

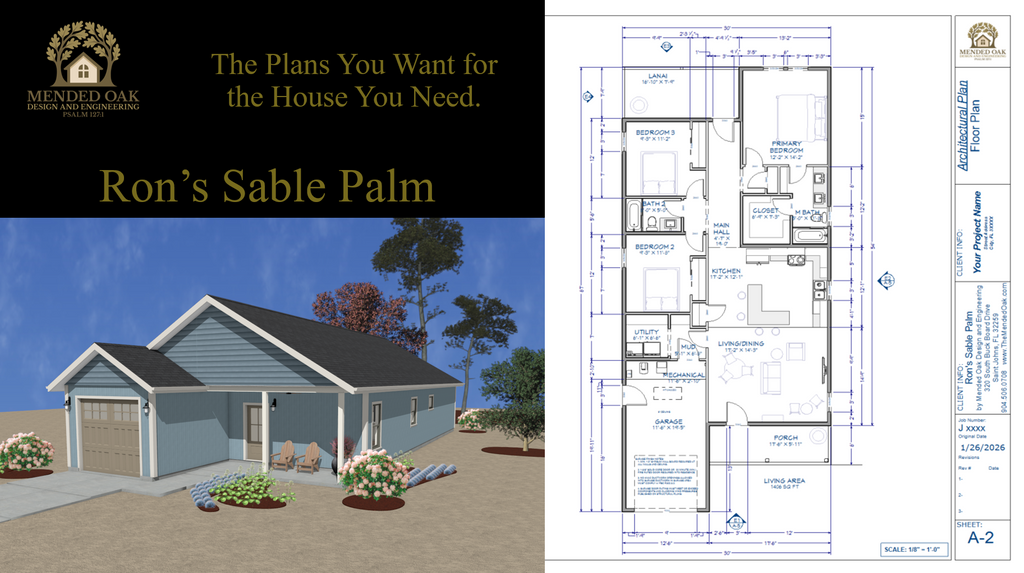

- Floor Plan
- Electrical Plan
- Roof Plan
- Elevations
- Window/Door Schedule
- Typical Wall Sections
- Roof/Window/Door Flashing
Structural Set - Digitally Signed PDF and (2) Paper Copies
- Cover Sheet (Governing Codes, Wind and Gravity Loads, Component List)
- Foundation Plan with Construction Details
- Required Structural Details
- Wall Framing
- Roof and Ceiling Framing Plan (If Conventionally Framed)
- Truss Layout (If Selected)
About the Finished Product: At Mended Oak, we believe a home should foster connection while still offering quiet spaces for rest and renewal. This 3‑bedroom, 2‑bath design provides
both—comfortable shared areas for gathering and private rooms for retreat.
Need to Customize? Want to extend the lanai? Enclose a porch? Modify a window or door? Change the exterior finish? Download a custom worksheet, mark it up, and contact us with the results. We want to work with you to deliver the house you need. Custom rates start at $1 per square foot for floor plan changes. You'll receive a full quote before we begin.
Subnote: Truss Plans are purchased separately from a truss manufacturer and aren't part of the plan-set price. If you'd like to use trusses, we recommend getting three quotes. (Florida Only: After you pick the one you prefer, we'll give them the design information they need, review their engineered truss package for your home, and update your plans so everything fits together smoothly. Selecting the truss option typically delays delivery by four to six weeks).
